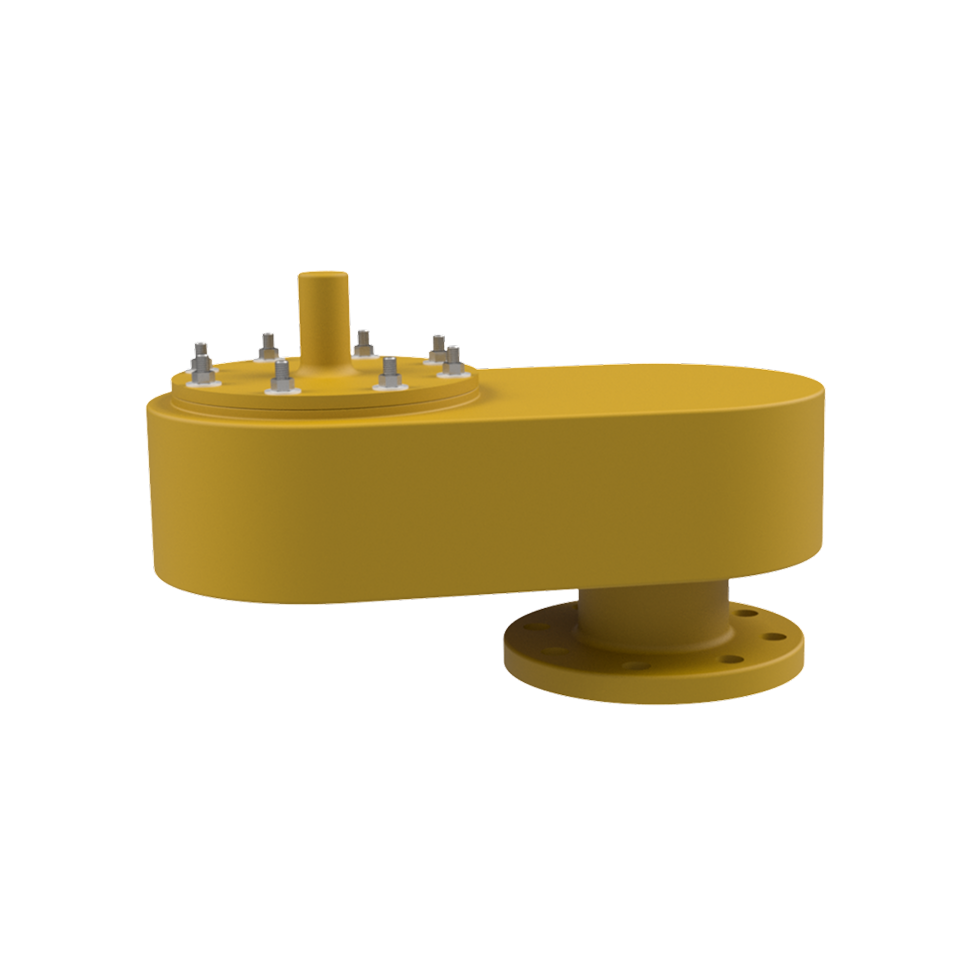

Vacuum Vents

Vacuum protection for atmospheric storage tanks.

What It Is & How It Works

Vacuum vents are weight-loaded relief devices that protect atmospheric storage tanks from vacuum collapse by admitting air when internal pressure drops below a calibrated set point. They address the hazard of shell buckling or roof collapse from vacuum that develops during product withdrawal, vapor condensation, or steam-out cleaning. Vacuum-only models have a single vacuum pallet and no pressure relief.

The vacuum pallet rests on a machined seat, held closed by calibrated weights. When internal pressure falls below atmospheric by more than the set point, the pallet lifts and air enters the tank; when pressure equalizes, it reseats under its own weight, cycling automatically with each event.

Vacuum vents mount on standard roof nozzles, sized per API 2000 for the tank’s maximum in-breathing rate. Set points adjust by adding or removing weights, and construction comes in carbon steel, stainless steel, or aluminum.

Vacuum Vent vs. Pressure & Vacuum Conservation Vent

A combined Pressure & Vacuum conservation vent provides both pressure and vacuum relief in one device. A vacuum-only vent omits the pressure pallet, relying on a separate pressure vent or blanketing valve for overpressure. Specify vacuum-only when another device already handles pressure relief at the tank.

When to Specify Vacuum Vents

Vacuum vents are specified when a tank requires dedicated vacuum protection at its own nozzle while pressure relief is handled separately:

Inert Gas Blanketed Tanks with Dedicated Pressure Relief: Tanks where a pressure vent or pilot-operated valve handles overpressure at one nozzle while a dedicated vacuum vent protects at another, so each function is sized and documented separately per API 2000.
Tanks Requiring Directional Vapor-Path Separation: Installations where vacuum intake and pressure relief route through different piping, such as filtered air intake for vacuum and vapor recovery for pressure, requiring separate single-function devices at dedicated nozzles.
Steam-Out or Cleaning Operations: Fixed-roof tanks subject to periodic steam cleaning, where rapid vapor condensation creates severe vacuum beyond the primary conservation vent’s capacity and calls for supplemental relief.
Petroleum and Chemical Storage Under API 2000: Fixed-roof tanks where API 2000 sizing shows separate vacuum and pressure devices give better-matched capacity than one combined vent, particularly large-diameter tanks.

Why It Excels

Blanketed Tanks Where Each Relief Function Must Be Independent

Separating vacuum from pressure relief lets each device be sized precisely for its function, maintained on its own schedule, and documented individually for compliance without affecting the other relief path.

Operations Where Vacuum Events Demand High In-Breathing Capacity

A dedicated vacuum vent can be sized to the tank's full in-breathing requirement without sharing nozzle capacity with a pressure pallet, maximizing relief flow through the nozzle.

Facilities Requiring Simple, Reliable Mechanical Protection

The single-pallet, weight-loaded design has no springs to fatigue and no pilots to maintain, giving years of reliable service between rebuilds.

Tanks Where Air Intake Requires Filtration or Conditioning

A dedicated air-intake point accepts inlet screens, filters, or desiccant elements to protect product quality, without routing conditioned air through a shared vent body.

Breathing Vent Configurations — Selection Guide

Attribute	Pressure & Vacuum Conservation Vent	Pressure-Only Vent	Vacuum-Only Vent
Primary Function	Both pressure and vacuum relief in one device for bidirectional breathing	Overpressure relief only; vacuum handled by a separate device or not required	Vacuum relief only; pressure handled by a separate device such as a blanketing valve
Pallet Configuration	Two pallet stacks, pressure and vacuum, in one housing	Single pressure pallet; no vacuum pallet	Single vacuum pallet; no pressure pallet
Typical Set-point Range	Pressure 0.5 to 16 oz/sq in.; vacuum 0.5 to 8 oz/sq in. (weight-adjustable)	0.5 to 16 oz/sq in. pressure (weight-adjustable)	0.5 to 8 oz/sq in. vacuum (weight-adjustable)
When to Specify	Default for most atmospheric fixed-roof tanks needing both reliefs at one nozzle	Blanketed tanks where a separate valve handles vacuum makeup and only pressure relief is needed	Tanks where a separate pressure vent or pilot valve handles pressure relief
Regulatory Driver	API 2000, EPA 40 CFR 60/63, NFPA 30	API 2000 pressure sizing, often with blanketing valves	API 2000 vacuum sizing, API 650 structural vacuum limits
Common Pairing	Flame arrester at outlet; emergency vent for fire case	Blanketing valve for vacuum makeup; flame arrester at outlet	Pressure vent or blanketing valve for pressure relief
Recommendation	Standard breathing device for fixed-roof tanks storing volatile or flammable liquids needing both reliefs	Specify when a blanketing system provides vacuum makeup and only overpressure relief is needed	Specify when pressure relief is handled independently and a dedicated vacuum device is needed

What to Consider Alongside Vacuum Vents

Consider an alternative when:

The tank needs both pressure and vacuum relief at one nozzle. A combined Pressure & Vacuum conservation vent handles bidirectional breathing in a single device and reduces roof penetrations. See Pressure & Vacuum Conservation Vents.
Tighter sealing or higher vacuum capacity is needed. Pilot-operated vacuum relief valves provide snap-action sealing that eliminates the seat leakage weight-loaded vents allow near the set point. See Pilot Operated Relief Valves.
The tank needs vacuum makeup from an inert gas source. A blanketing valve admits nitrogen rather than air when vacuum develops, preserving an inert atmosphere for oxidation- or moisture-sensitive products. See Tank Blanketing & Vapor Recovery.

How Vacuum Vents Fit Into a Larger System

Pair with a pressure conservation vent for overpressure relief, a flame arrester at each vent outlet for ignition prevention, and an emergency vent for fire-case protection to fully protect an atmospheric tank. See Pressure Conservation Vents, Flame, Deflagration & Detonation Arresters.
Combine with L&J Technologies level and temperature instrumentation feeding Clairvoyance to correlate vacuum events with withdrawal rates for operational analysis and API 2350 records. See Level Alarms and FuelsManager®.
