Tank Blanketing & Vapor Recovery

Inert gas protection and emission capture at the tank.

What It Is & How It Works

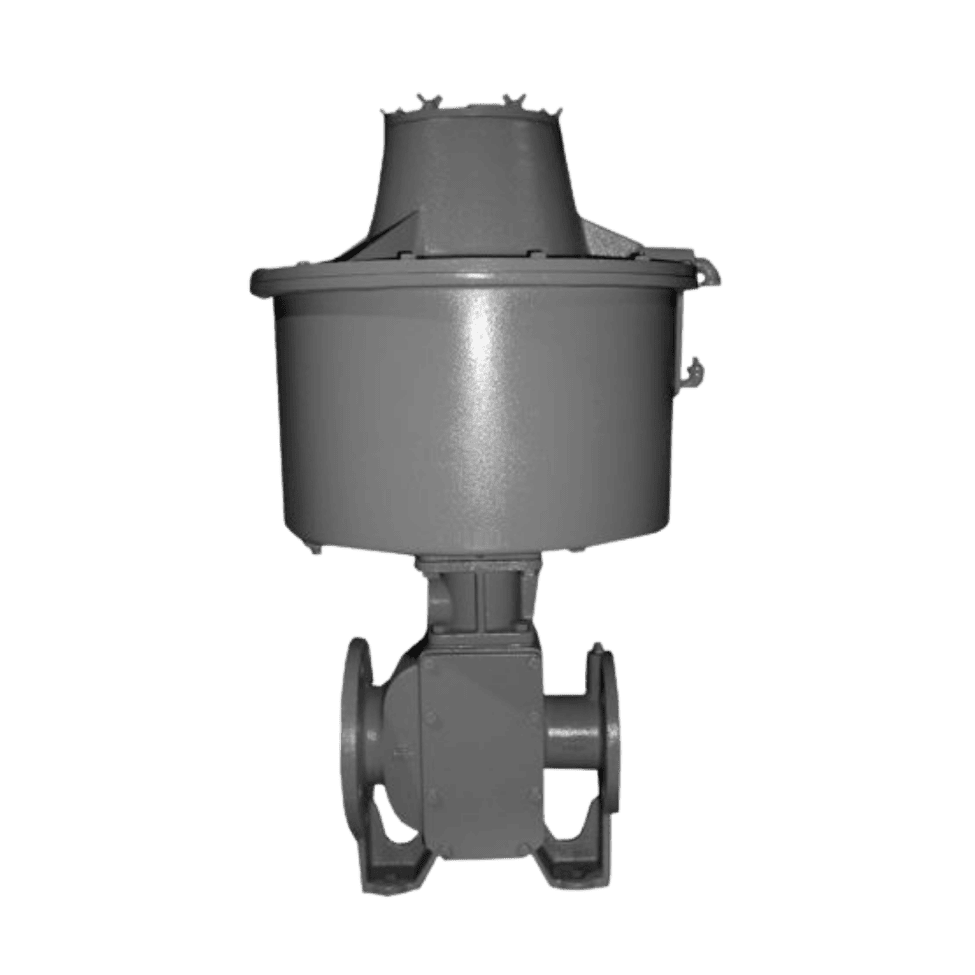

Tank blanketing valves and vapor recovery valves are pressure-regulating devices that manage gas composition inside a storage tank’s vapor space. Blanketing valves admit inert gas, typically nitrogen, when tank pressure drops below a set point, holding a positive blanket that keeps air out of the tank. Vapor recovery valves route displaced vapors to a collection system during filling rather than venting them to atmosphere. Together they address flammable vapor-air mixtures inside the tank and fugitive emissions outside it.

A blanketing valve senses vapor space pressure through a diaphragm. When withdrawal or thermal contraction drops pressure below the blanket set point, the valve opens to admit nitrogen, then closes when pressure recovers to conserve gas. A vapor recovery valve works in the opposite direction: when filling or thermal expansion raises pressure above its set point, it routes vapors to a recovery header or thermal oxidizer instead of releasing them through the conservation vent.

Both devices mount on tank roof nozzles and connect to gas supply or collection piping. Sizing follows API 2000 breathing-rate calculations. Blanketing valves are selected by blanket pressure and nitrogen supply capacity; vapor recovery valves by maximum vapor displacement rate.

Blanketing Valve vs. Vapor Recovery Valve

Blanketing valves let gas into the tank, holding a protective inert atmosphere when pressure drops. Vapor recovery valves let vapor out of the tank, capturing displaced vapors during filling instead of venting them. A tank may use both: a blanketing valve to preserve the nitrogen blanket during withdrawal, a vapor recovery valve to capture vapors during filling.

When to Specify Tank Blanketing & Vapor Recovery

Blanketing and vapor recovery equipment is specified when a tank requires inert atmosphere protection, emission capture, or both:

Tanks Storing Oxidation- or Moisture-Sensitive Products: Chemical, pharmaceutical, and specialty storage where atmospheric oxygen or moisture degrades product quality, requiring a continuous nitrogen blanket to exclude air from the vapor space.
Flammable Liquid Storage Requiring Explosion Prevention: Tanks storing products with flash points below ambient temperature where keeping the vapor space below the lower explosive limit requires inert gas dilution per NFPA 69, removing the oxygen needed to support combustion.
Facilities Subject to EPA 40 CFR 60/63 Vapor Limits: Fixed-roof tanks where NSPS and NESHAP rules require vapor capture during filling, routing displaced vapors to recovery or destruction rather than venting them through the conservation vent.
Terminals with Centralized Vapor Recovery Systems: Multi-tank facilities with shared collection headers where each tank needs its own vapor recovery valve on the common header, holding backpressure and preventing cross-contamination.
Chemical Plants Requiring Closed-Loop Vapor Management: Process tanks where both inert blanketing and vapor recovery are mandated as a closed-loop system preventing uncontrolled vapor release during filling, withdrawal, and breathing.

Why It Excels

Tanks Where Blanket Gas Conservation Affects Operating Costs

Precise set-point control and tight reseal open the valve only when tank pressure genuinely drops below the blanket threshold, cutting the purchased nitrogen consumed each year across multi-tank installations.

Facilities Where Vapor Emission Reductions Drive Compliance

Vapor recovery valves capture displaced vapors at the source during filling, reducing the fugitive emissions that feed Title V inventories and eliminating visible plumes that draw complaints and regulatory attention.

Tanks Requiring Product Quality Protection Through Inert Atmosphere

The blanketing valve responds within seconds, holding the nitrogen blanket through rapid withdrawal cycles without letting air in through the vacuum path, preserving product integrity batch after batch.

Installations Where Maintenance Simplicity Affects Total Cost of Ownership

Diaphragm-actuated blanketing valves and weight-loaded vapor recovery valves use mechanical designs with minimal moving parts, running reliably between maintenance intervals without electronic controllers or positioners.

Blanketing Valve vs. Vapor Recovery Valve — Selection Guide

Attribute	Blanketing Valve	Vapor Recovery Valve
Primary Function	Admits inert gas (nitrogen) into the vapor space when pressure drops below the blanket set point	Routes displaced vapors to a collection or destruction system when pressure rises above the recovery set point
Gas Flow Direction	Into the tank, from the nitrogen supply header to the vapor space	Out of the tank, to a recovery header, scrubber, or thermal oxidizer
Trigger Condition	Tank pressure drops below the blanket set point during withdrawal, thermal contraction, or breathing	Tank pressure rises above the recovery set point during filling, thermal expansion, or blanketing overshoot
Actuation Method	Diaphragm senses pressure and opens the nitrogen port against a spring or weight	Weight-loaded pallet senses pressure and opens the vapor outlet to the recovery header
Regulatory Driver	NFPA 69 explosion prevention through inerting, product-quality inert-atmosphere specifications	EPA 40 CFR 60/63 (NSPS/NESHAP) vapor limits, state VOC regulations, Title V permits
Common Pairing	Pressure-only conservation vent for overpressure relief; the blanketing valve handles vacuum makeup	Conservation vent as backup atmospheric relief; the recovery valve captures most displaced vapor
Recommendation	Specify on tanks needing inert atmosphere protection for product quality, explosion prevention, or moisture exclusion	Specify where displaced vapors must be captured for emission compliance or have recovery value

What to Consider Alongside Tank Blanketing & Vapor Recovery

Consider an alternative when:

The tank does not need inert atmosphere protection. When the product is not oxidation- or moisture-sensitive and the vapor space poses no explosion risk, a standard conservation vent gives adequate breathing at lower cost and without nitrogen infrastructure. See Pressure & Vacuum Conservation Vents.
Emission control is needed but no vapor recovery infrastructure exists. Without a collection header, scrubber, or thermal oxidizer, a tight-sealing pilot-operated relief valve reduces emissions at the vent without downstream vapor processing. See Pilot Operated Relief Valves.
The application involves biogas rather than petroleum or chemical vapors. Biogas needs equipment built for corrosive, moisture-laden gas streams. See Biogas Stream Equipment.

How Blanketing and Vapor Recovery Valves Fit Into a Larger System

Pair the blanketing valve with a pressure-only conservation vent for overpressure relief, a flame arrester at the vent outlet, and an emergency vent for fire-case protection to build a fully managed, closed-loop tank breathing system. See Pressure Conservation Vents, Flame, Deflagration & Detonation Arresters .

Combine with L&J Technologies level and pressure instrumentation feeding Clairvoyance to monitor blanket pressure, correlate nitrogen use with product movement, and flag valves cycling from set-point drift or seat wear. See Level Alarms and FuelsManager®.
