Shand & Jurs Model 94580 Combination Emergency Vent and Flame Arrester

The Model 94580 Combination Emergency Vent and Flame Arrester is designed for tank farm safety engineers, HSE and compliance managers, terminal operations leaders, and EPC project specifiers who need certified deflagration protection combined with atmospheric tank venting in a single compact assembly.

Installed at open vent terminations, the unit allows continuous tank breathing while preventing flame propagation into the vapor space, eliminating the need for separate free vent and arrester devices and reducing equipment count and installation labor.

A crimped ribbon flame element absorbs heat from an approaching flame front and quenches combustion before it can enter the tank, while the integrated hooded vent provides unrestricted atmospheric flow during normal breathing.

Approved to ATEX EN 12874 and ISO 16852 for IIA / NEC Group D service, the Model 94580 is available in 2–12 in. sizes with ANSI, EN 1092-1, or JIS flanges, with sizing verified using Shand & Jurs WinSize software.

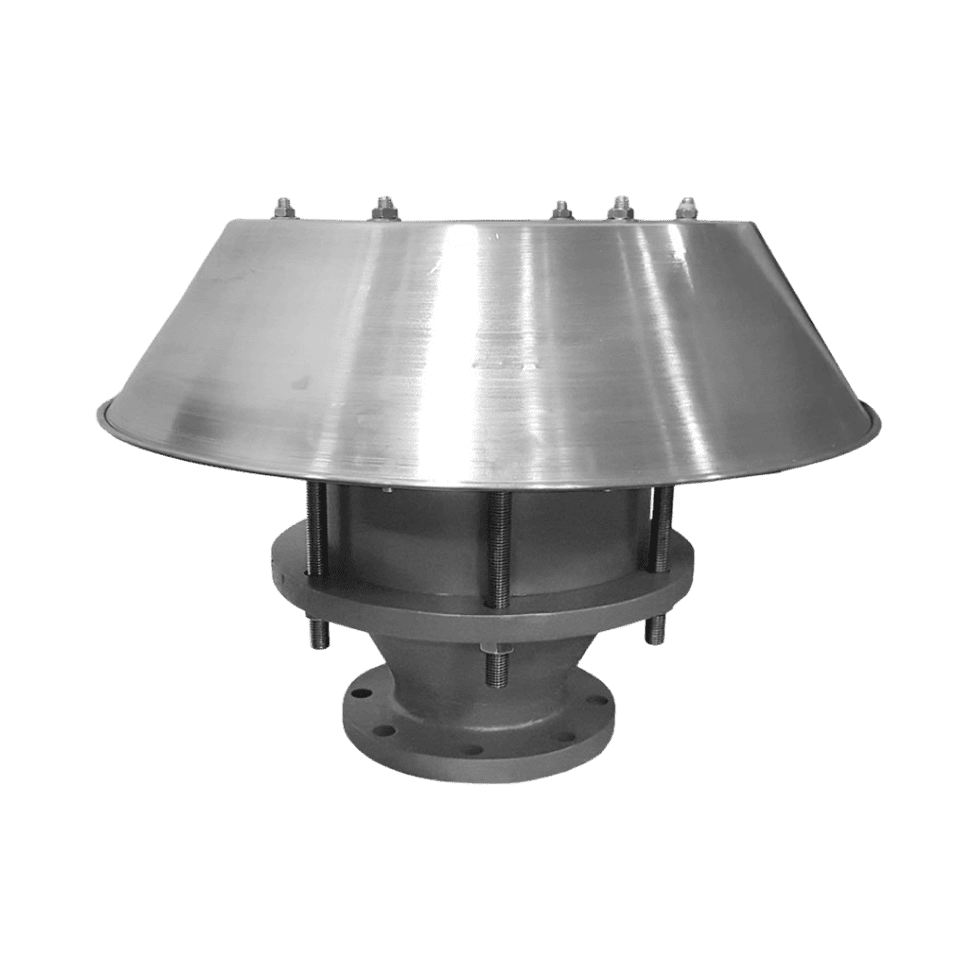

Shand & Jurs Model 94550 Combination Flame Arrester and Free Vent

Applications

Fuel and Chemical Storage Tanks: Installed on atmospheric fuel and chemical storage tanks to combine continuous free venting with certified deflagration protection, reducing nozzle count and overall vent-system complexity.
Wastewater Digesters and Biogas Systems: Protects digester covers and biogas holders where low-pressure combustible vapor must breathe to atmosphere while remaining guarded against flame propagation into the vapor space.
Classified Area Installations: Applied in ATEX and ISO-classified hazardous locations where a certified deflagration-protected vent is required at the tank outlet to support hazard analysis and code acceptance.
Atmospheric Vessels and Low-Pressure Storage: Used on atmospheric process vessels and low-pressure storage where unrestricted breathing must be preserved alongside flame protection at the open-vent discharge point.

Technical Specifications

Parameter

Specification

Model

Shand & Jurs® 94580 Combination Emergency Vent and Flame Arrester

Device Type

Combination Emergency Vent and Flame Arrester

Technology

Crimped ribbon flame element with integrated hooded atmospheric vent

Size Range

2″, 3″, 4″, 6″, 8″, 10″, 12″

Max Operating Pressure

2–6″: 1.12 bara (16.20 psia); 8–12″: 1.10 bara (15.95 psia)

Max Operating Temperature

60 °C (140 °F)

Gas Group

IIA (NEC Group D)

Approvals

ATEX EN 12874 and ISO 16852 (Short Term Burn); aluminum and cast-iron bodies: ISO 16852 only

Installation

Open vent termination on atmospheric tank or vessel nozzle

Flange Options

ANSI 125/150 FF/RF, EN 1092-1 PN10/16 FF/RF, JIS 10K FF/RF (RF not available with aluminum)

Body Materials

Carbon Steel, 304 SS, 316 SS, Aluminum, Duplex SS, Hastelloy C, or Alloy 20

Tube Bank Materials

Carbon Steel, 304 SS, 316 SS, Duplex SS, Hastelloy C, or Alloy 20

Hardware

18-8 SS standard; 304 SS, 316 SS, Duplex SS, Hastelloy C, or Alloy 20 available

Temperature Monitoring

3/4 in. NPT port on unprotected side of tube bank (probe user-supplied)

Element Design

Unitized removable element for inspection without body removal

Sizing Support

Shand & Jurs WinSize pressure-drop software

Typical Applications

Fuel storage tanks, wastewater digesters, biogas systems, chemical storage, atmospheric vessels, classified area installations
