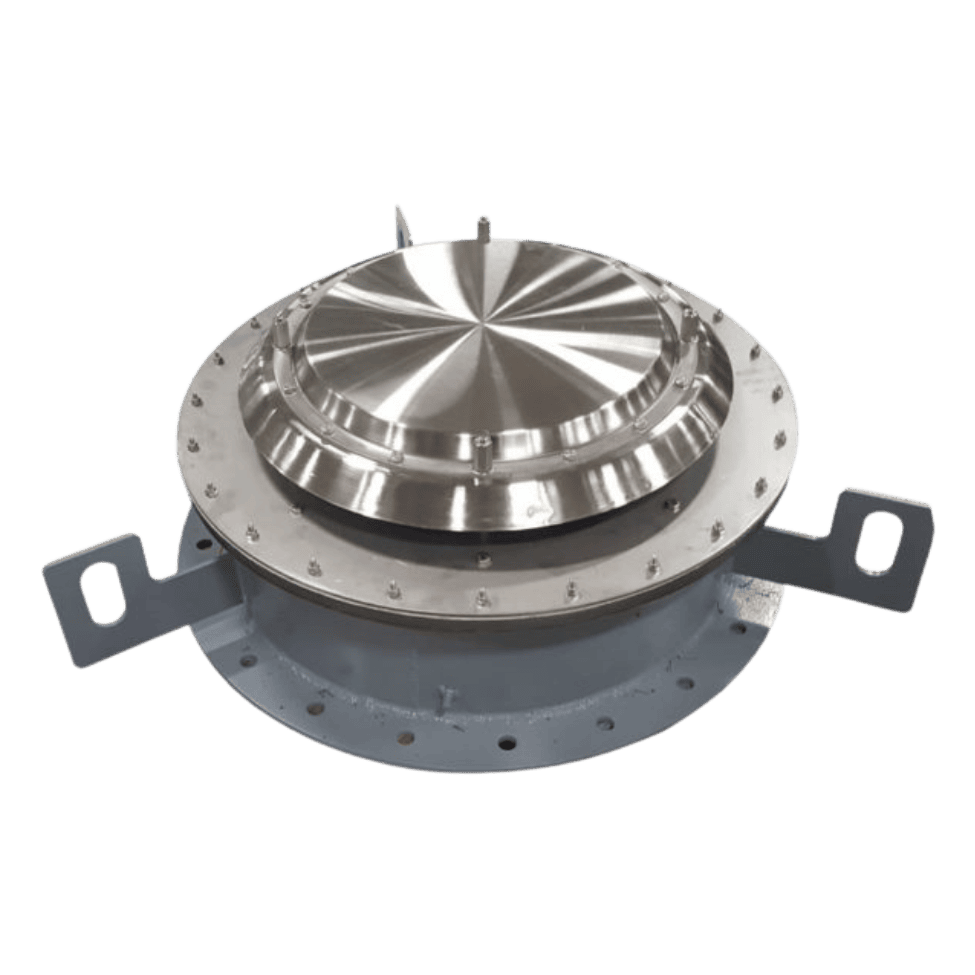

Shand & Jurs 94221 P&V Emergency Vent and Manhole Cover

For terminal operators, refinery specifiers, and digester-cover designers, the Shand & Jurs 94221 consolidates conservation venting, emergency relief, and manway access into a single tank-roof penetration for atmospheric storage tanks and fixed digester covers.

Unlike split installations that use separate P/V vents, emergency vents, and manways — multiplying leak paths, nozzle counts, and roof reinforcement — the 94221 handles all three functions at one location, with a limited-lift cover that automatically reseats after an overpressure event.

Weight-loaded pressure and vacuum pallets provide predictable routine breathing. On an excursion, the limited-lift emergency cover opens for high-capacity discharge, reseats without cover loss, and requires no manual intervention. Sizing is per API 2000 with WinSize support.

Optional Expanda-Seal technology (setpoints 1.5 oz/in² and higher) tightens sealing as operating pressure approaches setpoint, holding leakage under 0.5 SCFH at 95 percent. Available in 20-inch and 24-inch sizes with ANSI Class 150 FF, API-650, or EN1092-1 flanges.

Features

Consolidates pressure relief, vacuum relief, emergency venting, and tank access into one roof penetration, reducing nozzle count and simplifying tank-top layout.

Emergency cover opens for high-capacity discharge during overpressure events and automatically reseats without cover loss or manual reinstallation.

Diaphragm-sealed pressure and vacuum pallets maintain predictable routine breathing performance, stabilizing tank pressure across daily thermal cycles.

Available on setpoints 1.5 oz/in² and higher, holds leakage under 0.5 SCFH at 95 percent of setpoint, reducing fugitive emissions during normal operation.

Direct installation on standard API 650 tank-roof manways supports retrofit into existing roof openings without tank-top modification or reinforcement.

Service access through the integrated manway avoids unbolting separate covers, reducing downtime, confined-space preparation, and gasket-replacement cost.

Applications

Petroleum Storage: Combines routine breathing, emergency relief, and inspection access on crude, product, and intermediate tanks requiring both normal and fire-case protection.
Chemical Storage: Handles elevated-pressure and corrosive-vapor service with aluminum, carbon steel, or 316 stainless steel bodies matched to the process environment.
Tank Farms: Reduces nozzle count across large terminal installations, lowering reinforcement requirements and leak paths versus separate vent, emergency, and manway hardware.
Fire Case Protection: Limited-lift emergency cover delivers high-capacity discharge sized per API 2000 fire-case methodology, supporting engineering review and documented safety cases.
Fixed Digester Covers: Protects anaerobic digester covers against biogenic and thermal pressure events while preserving routine inspection and maintenance access through the same opening.
VOC-Regulated Tanks: Expanda-Seal option reduces continuous vapor leakage near setpoint, supporting reduced-emission operating programs at terminals and chemical sites.

Specifications

Parameter

Specification

Device Type

Combined P/V conservation vent, limited-lift emergency vent, and manhole cover

Pressure Settings

1.0 oz/in² (1.73″ W.C.) Aluminum; 1.3 oz/in² (2.25″ W.C.) Stainless Steel

Vacuum Settings

1.1 oz/in² (1.9″ W.C.)

Maximum Pressure Setting

8 oz/in² (13.84″ W.C.)

Maximum Vacuum Setting

4.0 oz/in² (6.92″ W.C.)

Emergency Relief

Limited-lift cover (automatic reseating)

Expanda-Seal Leakage

<0.5 SCFH at 95% of setpoint

Standard Leakage (Baseline)

~1.0 SCFH at 90% of setpoint

Sealing Method

Diaphragm-sealed pallets

Loading Method

Weight-loaded

Nominal Sizes

20″ and 24″

Connections

ANSI Class 150 FF; API-650; EN1092-1 available

Sizing Basis

API 2000 (WinSize / EZ-Flow support)

Body Material

Steel (normal service), Aluminum (low temperature), or 316 Stainless Steel

Pallets

Aluminum or 316 Stainless Steel

Diaphragm

FEP (standard); FKM or PFA for Expanda-Seal assemblies

Weights

Lead and Steel (standard); 316 Stainless Steel available

Hardware

316 Stainless Steel

Temperature Range

Aluminum −65°F to +250°F; Carbon Steel −20°F to +350°F; 316 SS −65°F to +350°F

Approvals / Options

API-650 mounting, stainless steel construction, alternate diaphragm materials, raised-face flange (CS/SS only), ATEX certification
